1920’s Majestic Flattop Restoration

This is a Majestic Flat Top from the 1920’s that my great grandfather built while in Lyndhurst, NJ.  When I found it, it was in horrible shape and needed quite a bit of restoration.  I started the restoration at my home bench before I moved to the Monroe Street shop and eventually finished it in Monroe Street a few months later.

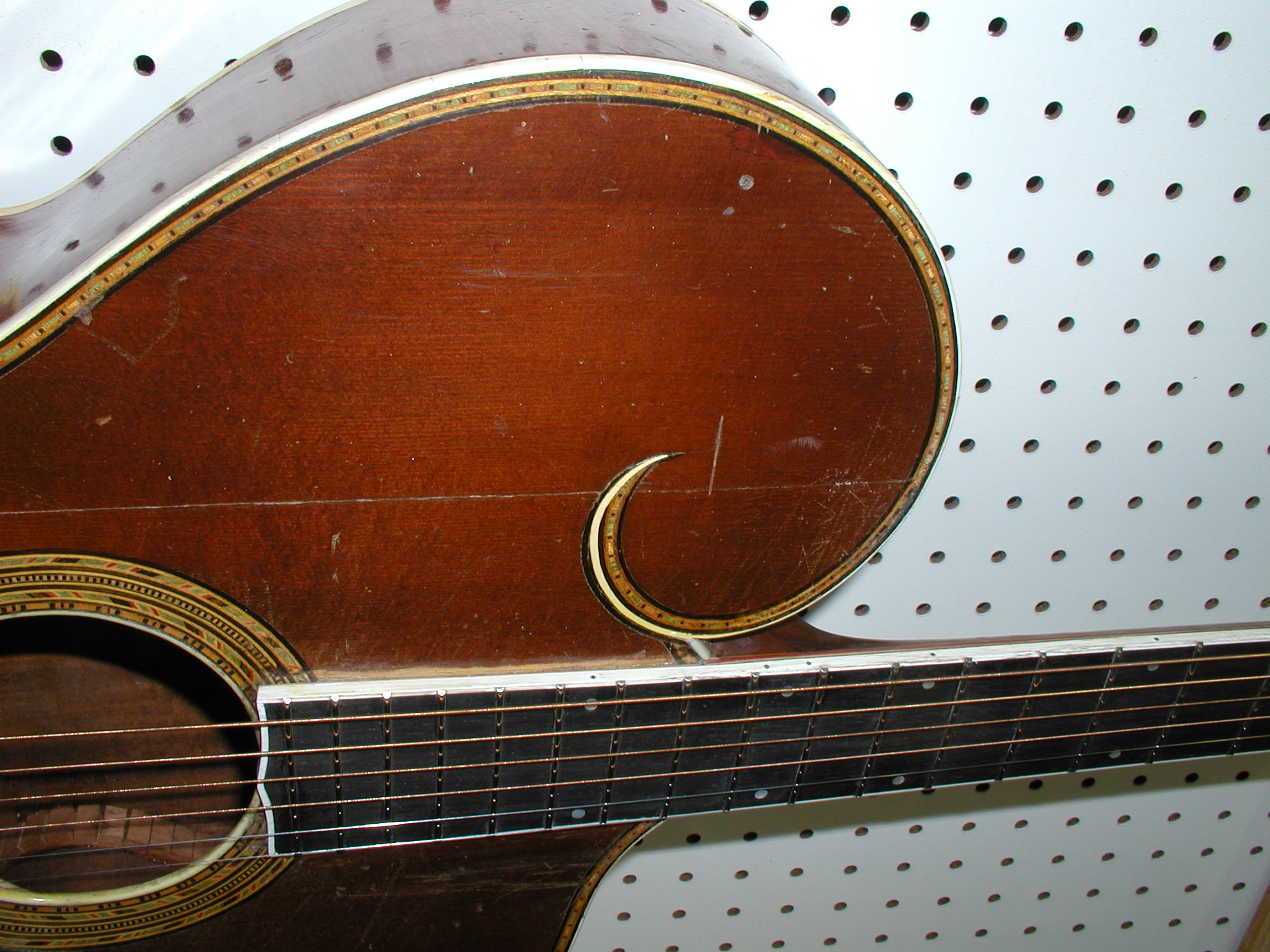

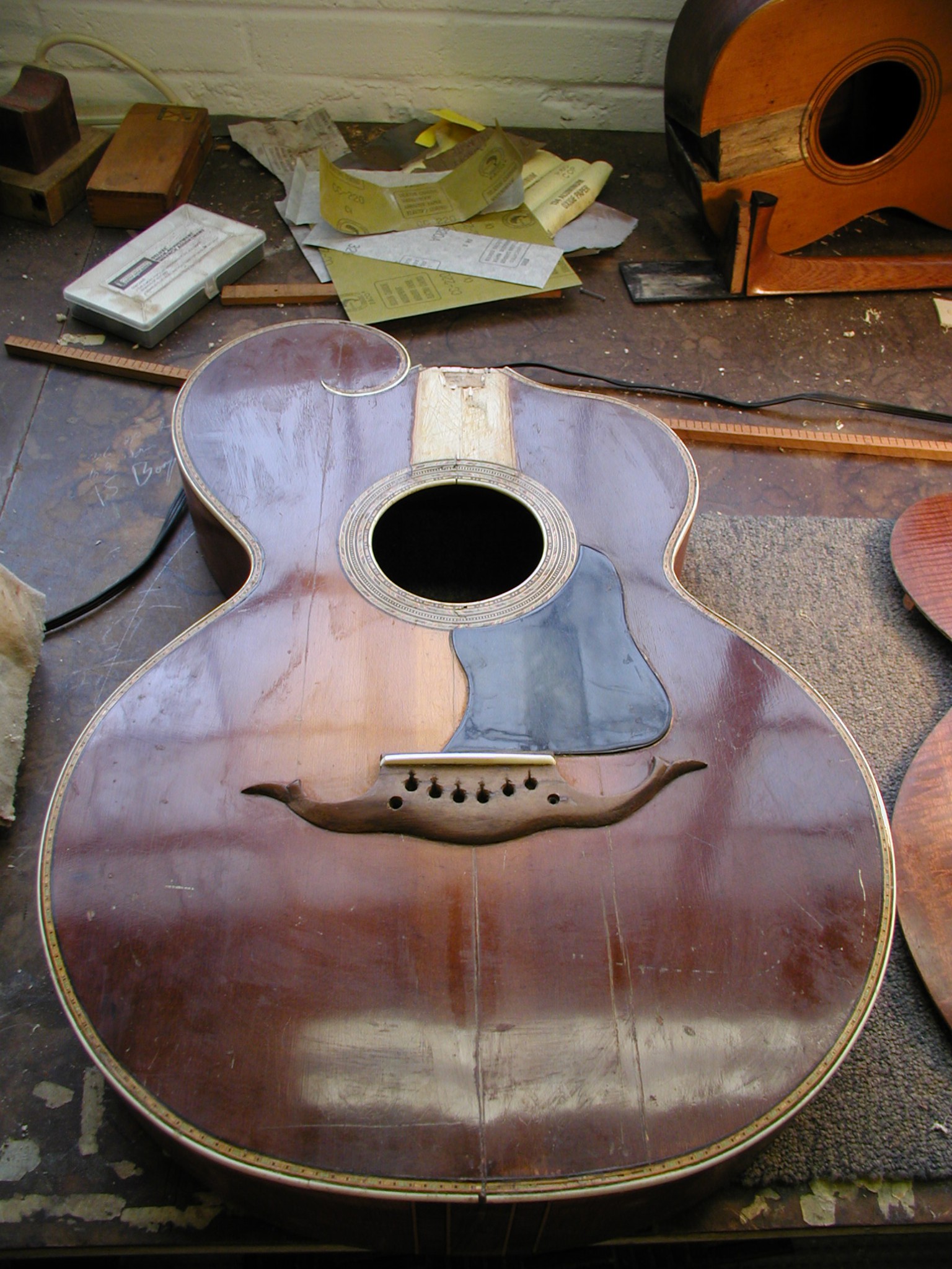

Here’s the instrument when I first got it. Lots of bad repairs and it was falling apart.

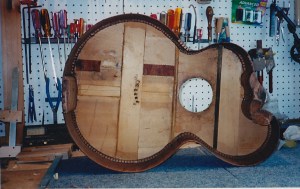

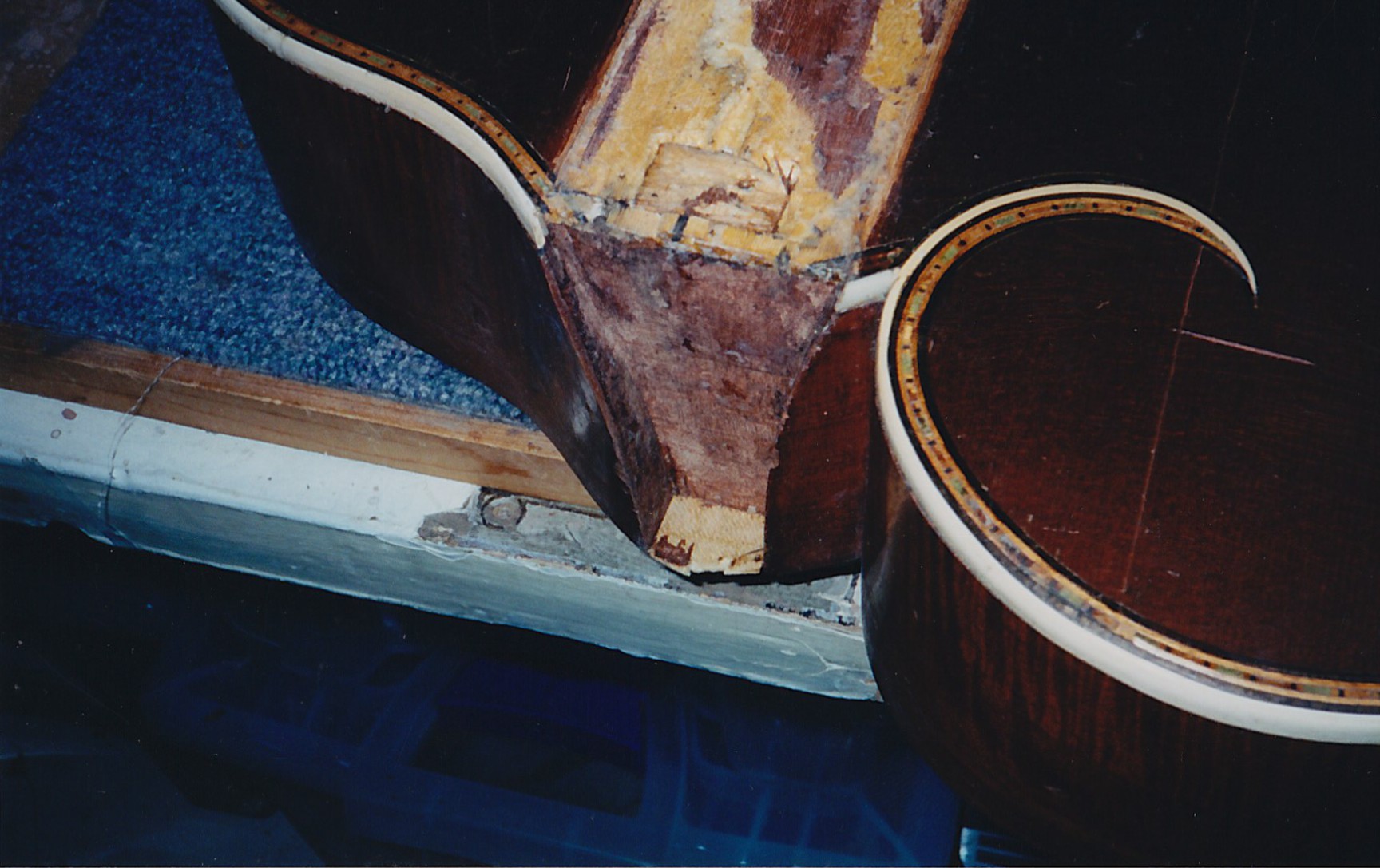

I pulled off the neck. The neck joint was more like a violin joint then a guitar dovetail.

IMG_0002

The main issue was it had been strung with steel strings but was never braced for it.

IMG_0006

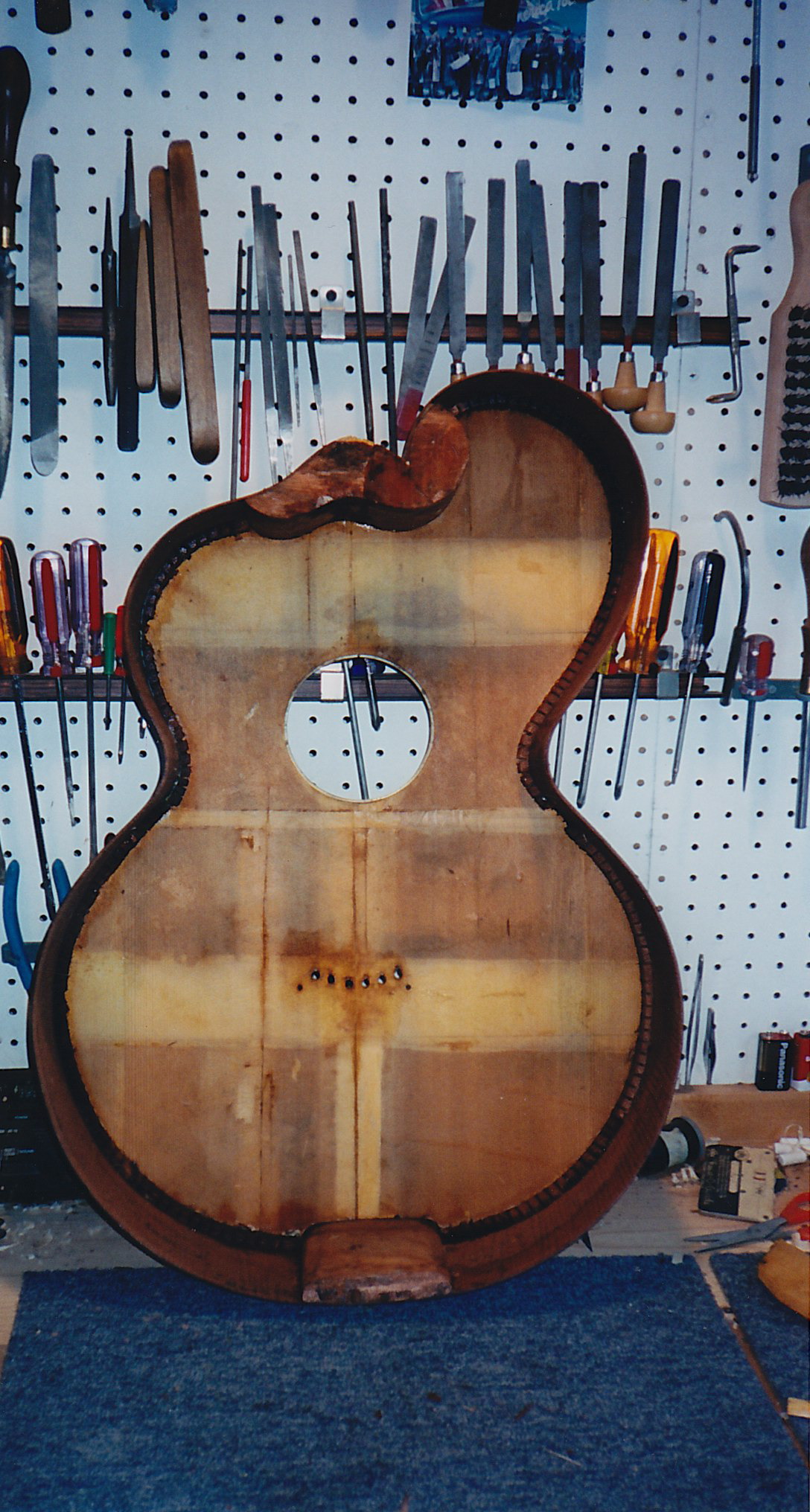

I carefully removed all the old bracing.

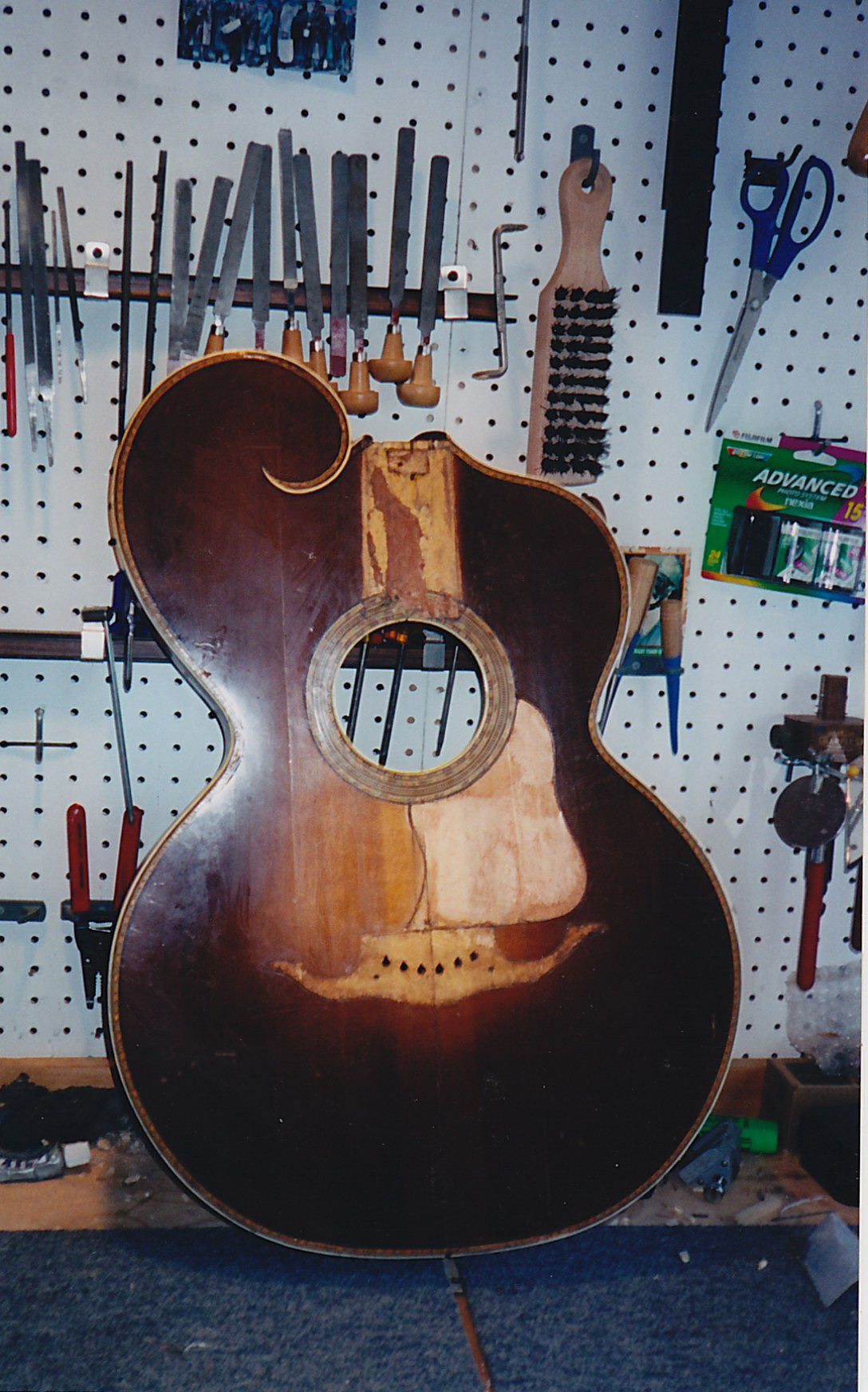

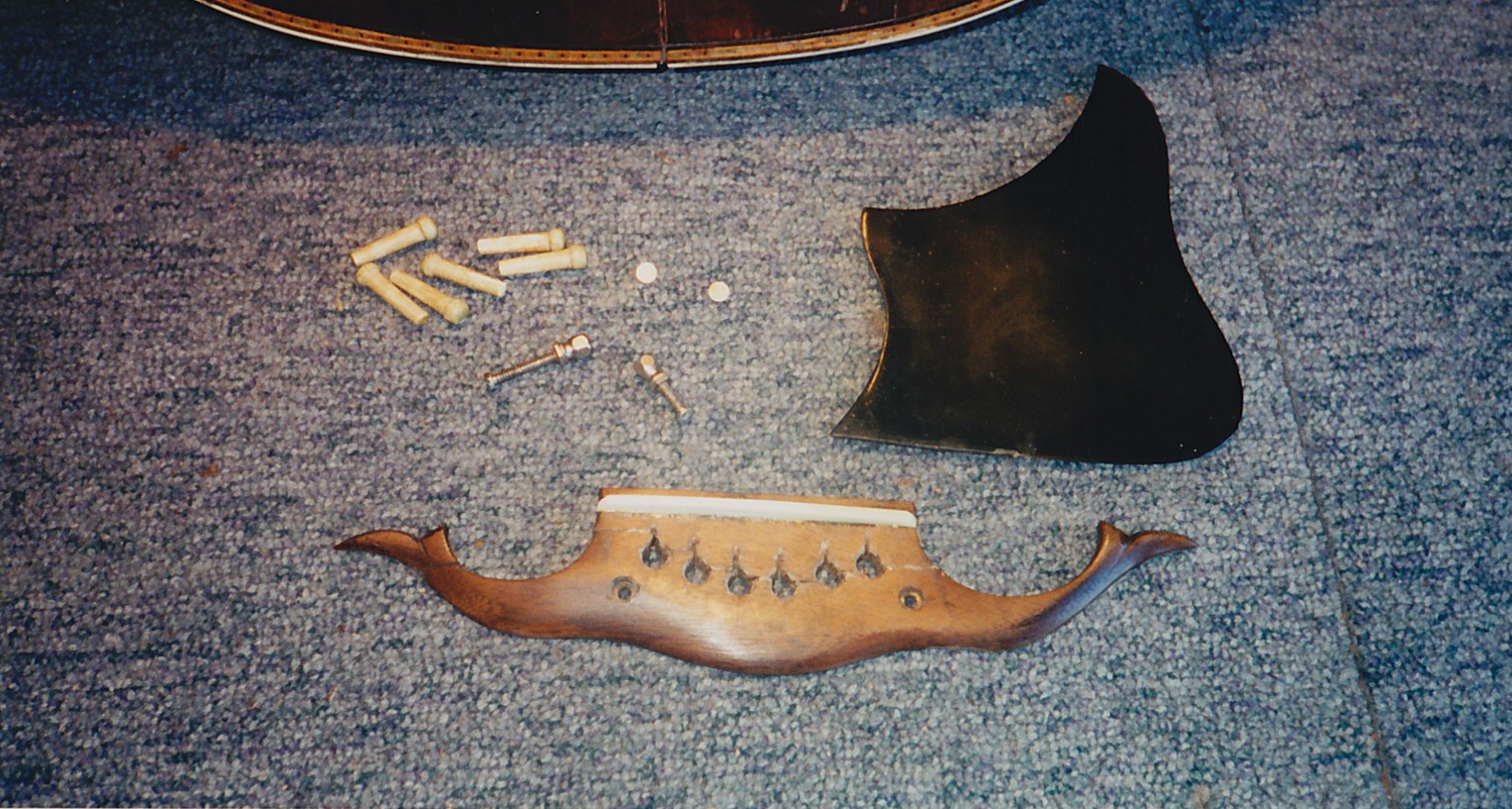

Then the parts from the top were removed.

IMG_0003

Now the top cracks could be addressed.

IMG_0005

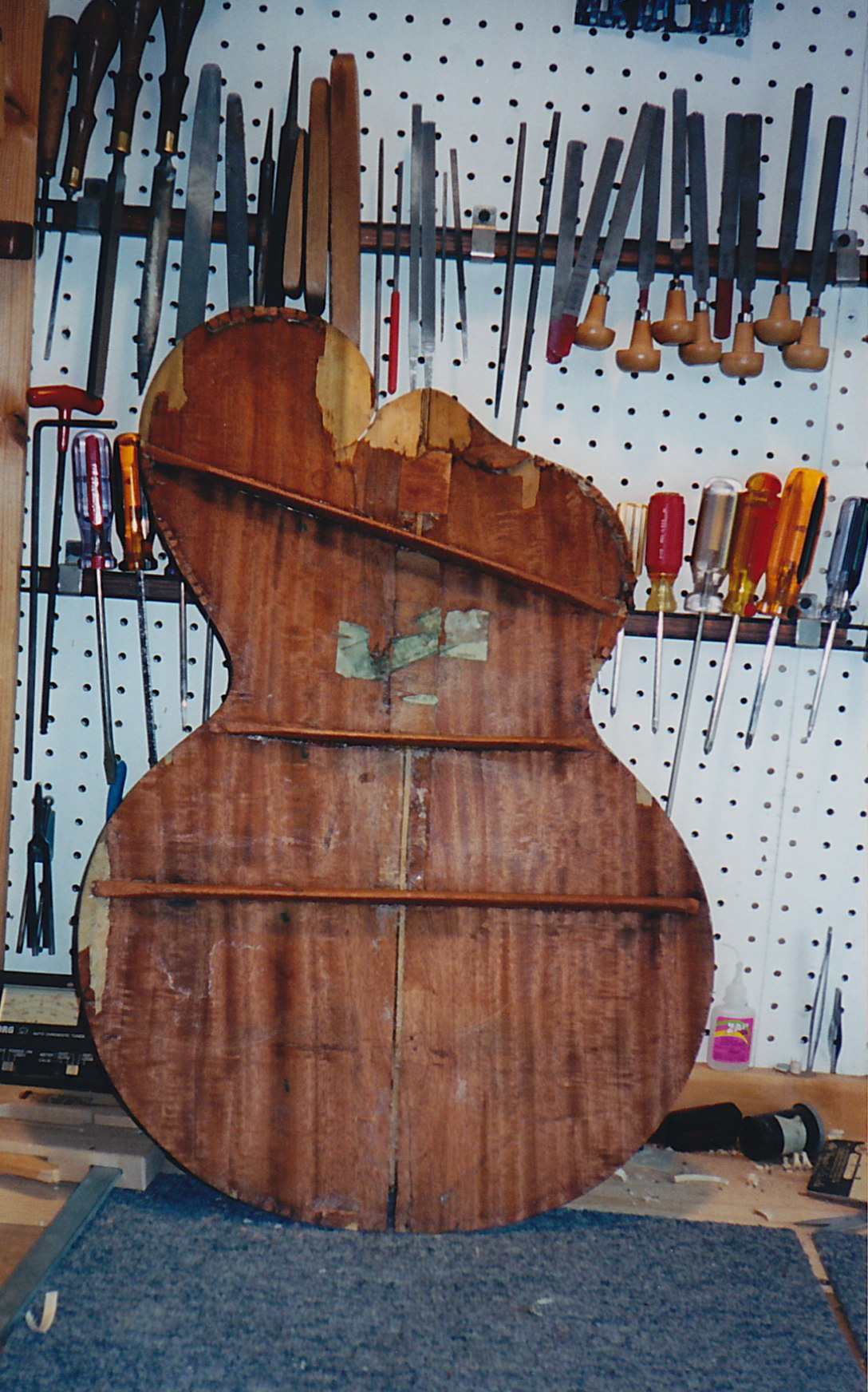

The back was laminated with a flamed mahogany that was somewhat going to need replacing. Matching it was an issue.

IMG_0008

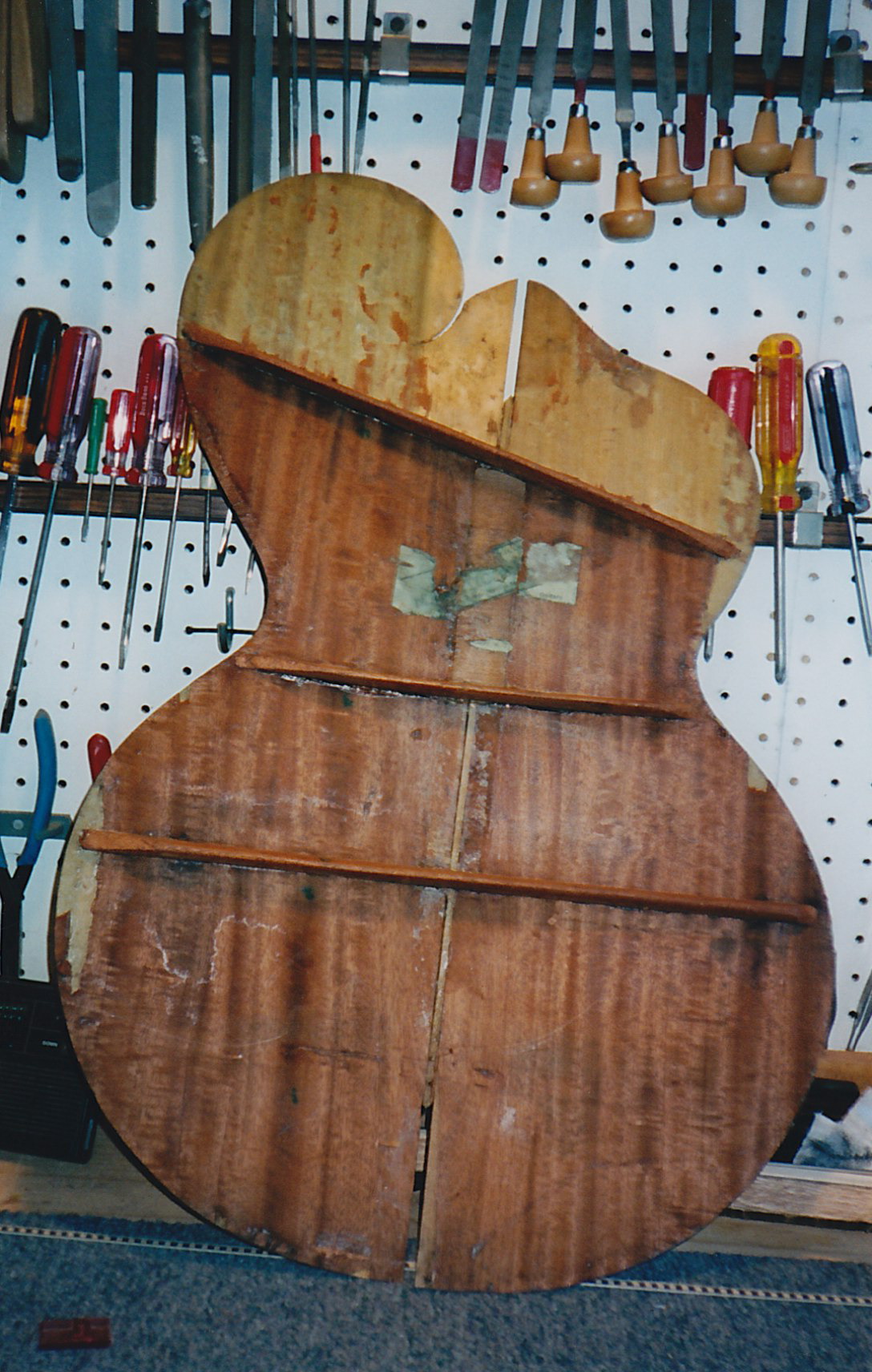

I pulled off what needed replacement and hoped to save the rest.

a

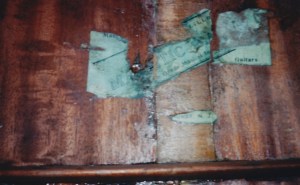

The label was in terrible condition but I needed to save it the best I can

a

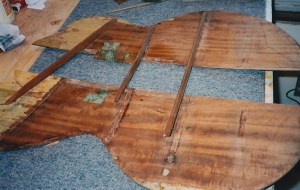

I carefully pulled the back apart and needed to rebrace it for more strength.

a

Now rebraced and reinforced.

OLYMPUS DIGITAL CAMERA

The center strip was now replaced.  The old one disintegrated over the years.

a

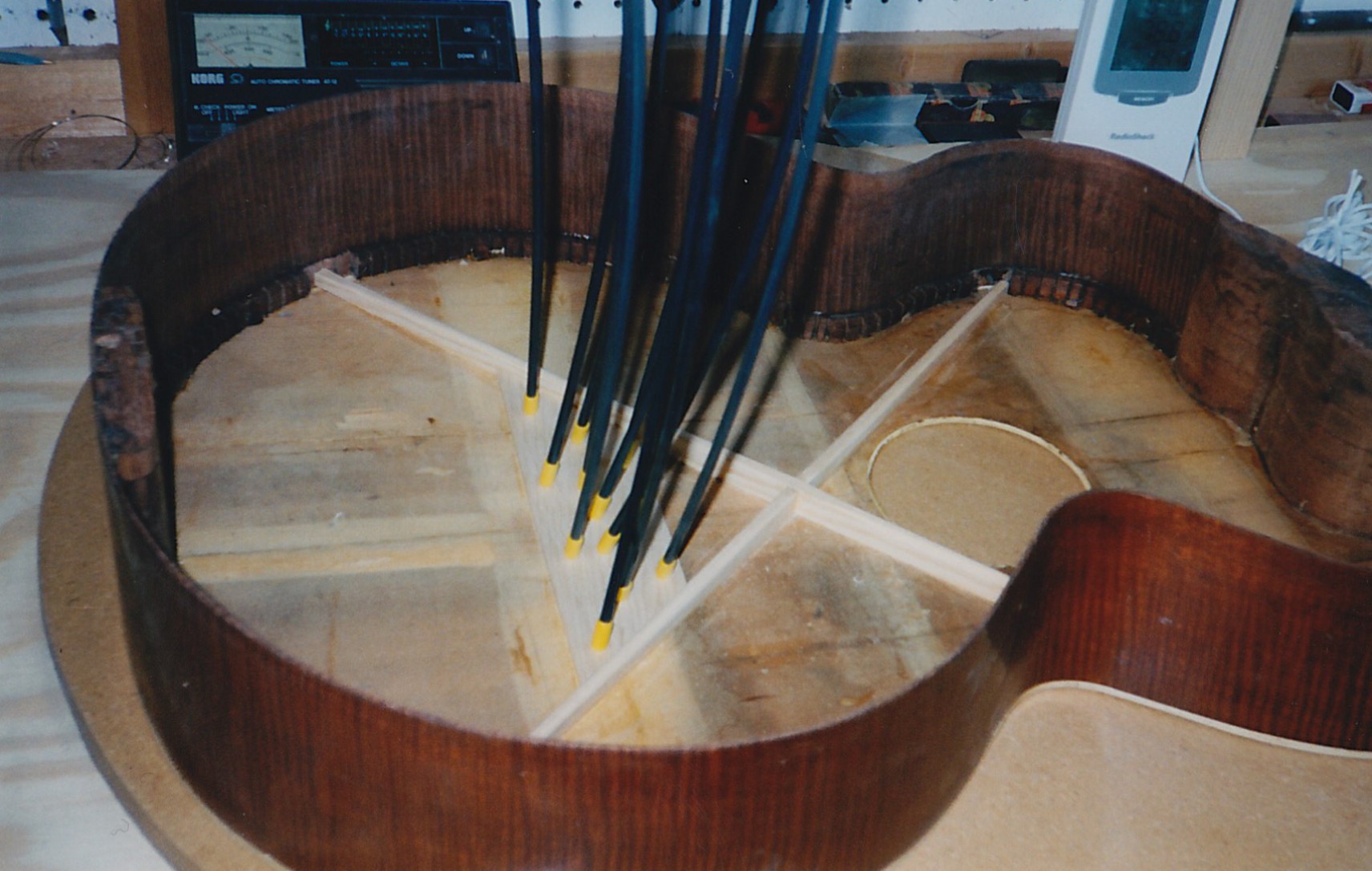

I could now start rebracing the top.

a

Now rebraced and the cracks reinforced.

a

The parts could now go back on the top.

a

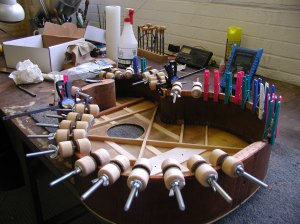

Attaching the new kerfing to support the back.

a

The back is now glued on and new binding is put on.

a

Neck reattached and new frets installed.

OLYMPUS DIGITAL CAMERA

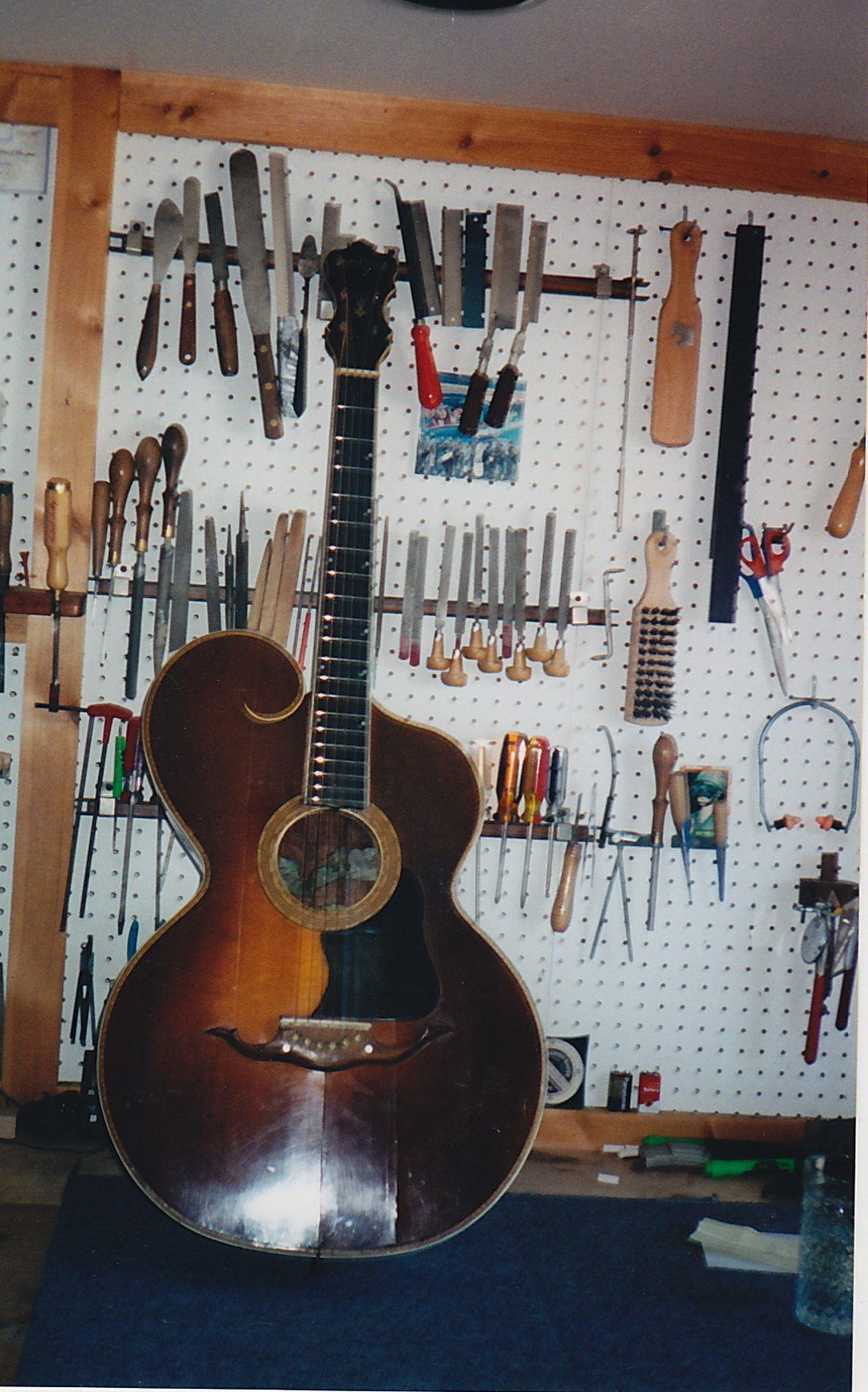

All done!

OLYMPUS DIGITAL CAMERA

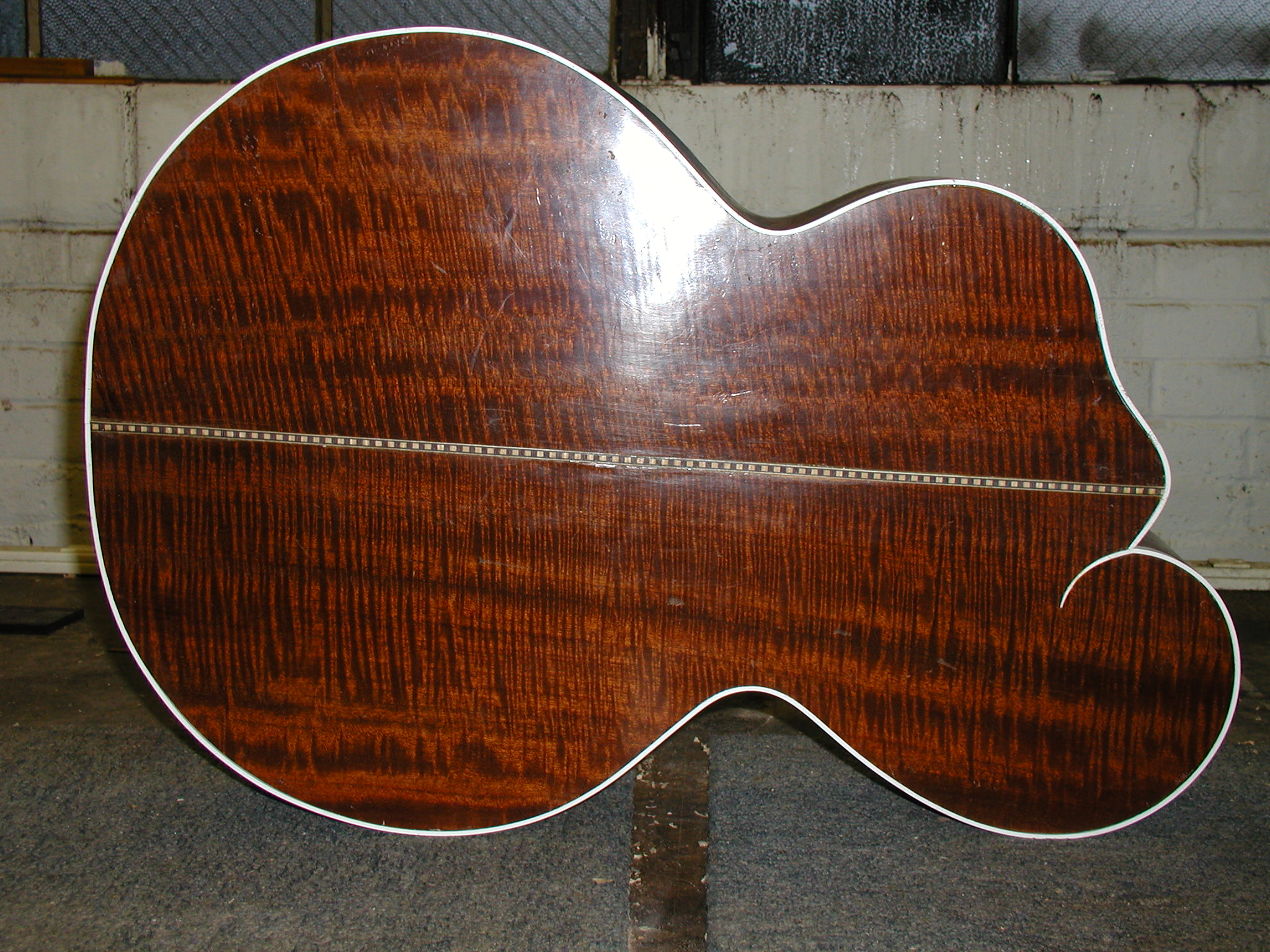

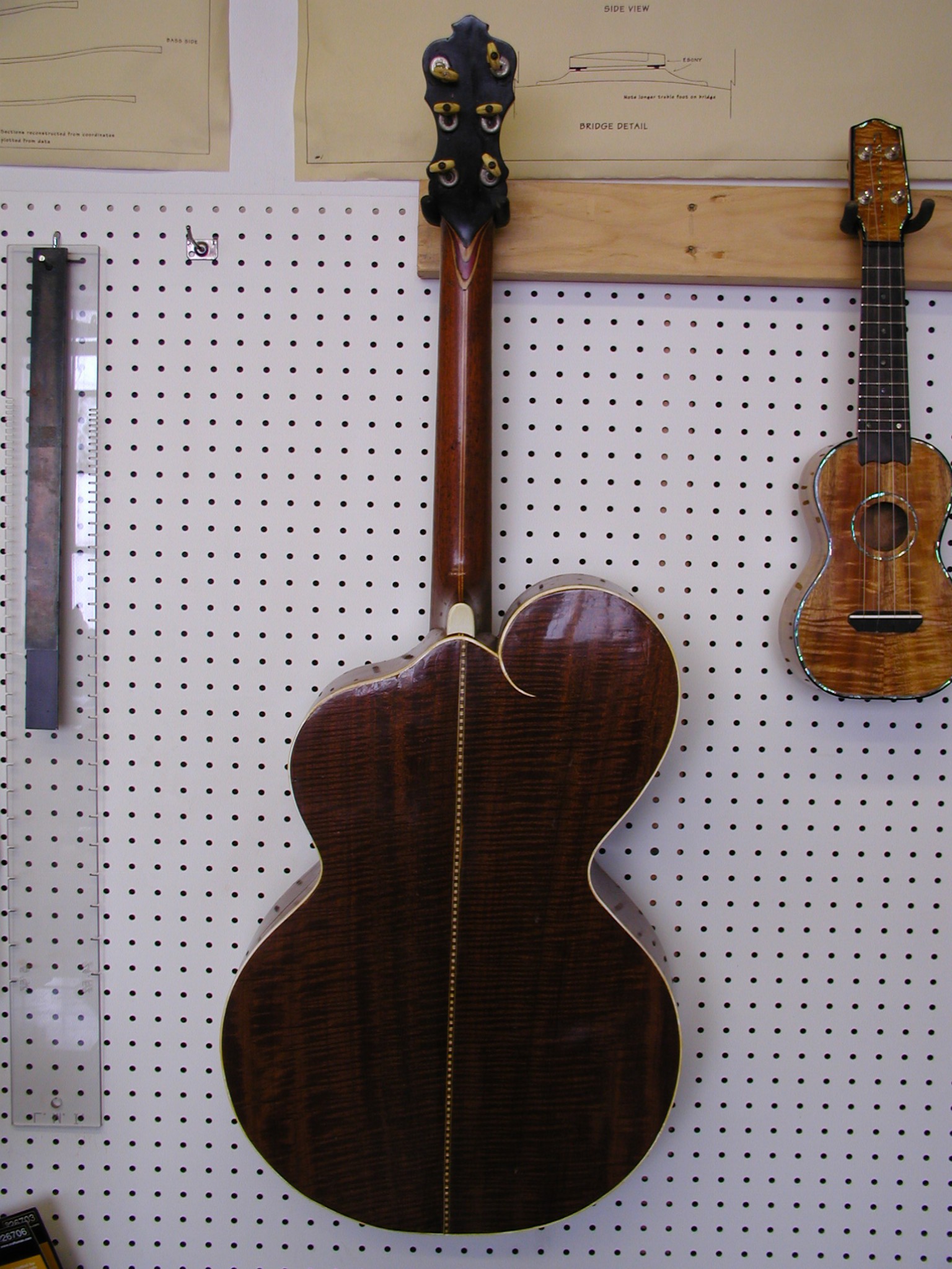

And the back too…
